Container Specifications

Please feel free to view our individual container specifications by clicking on the names below:

20 Foot Containers

40 Foot Containers

Flat Racks

20 FT

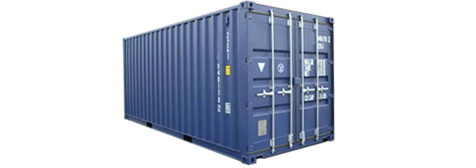

20' Dry Container

Technical Specifications

The ideal container if you need a small storage unit

Outside Dimension (m)
Length: 6.058
Width: 2.438
height: 2.591

Inside Dimensions (m)
Length: 5.898
Width: 2.350
Height: 2.390

Weight: (kg)
Gross Weight: 30480 / 24000
Loading: 28550 / 21860
Tare: 2230 / 2140

Forklift Pockets (m)
Width: 0.360
Height: 0.115

Door Opening (m)
Height: 2.280
Width: 2.340

Volume (m3)
33.10

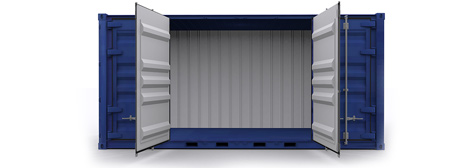

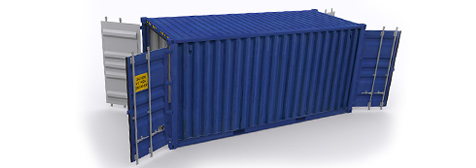

20' Double Door

Technical Specifications

This container has door openings in both ends and it is particularly suited for temporary storage. A customized container is often manufactured on the basis of a 20’ Double Door.

Outside Dimension (m)
Length: 6.058
Width: 2.438
Height: 2.591

Inside Dimensions (m)
Length: 5.844
Width: 2.350
Height: 2.390

Weight (kg)
Gross Weight: 24000
Loading: 21690
Tare: 2310

Forklift Pockets (m)
Width: 0.360
Height: 0.115

Door Opening (m)
Height: 2.280
Width: 2.340

Volume (m3)
32.80

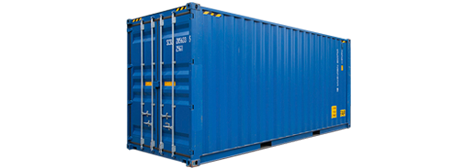

20' High Cube

Technical Specifications

It is most commonly used in Northern Europe and the USA and is practical when cargo requires more space heightwise; i.e. + 30 cm.

Outside Dimension (m)
Length: 6.058
Width: 2.438
Height: 2.896

Inside Dimension (m)
Length: 5.898
Width: 2.350
Height: 2.695

Weight (kg)
Gross Weight: 30480
Loading: 28120
Tare: 2360

Forklift Pockets (m)
Width: 0.360
Height: 0.115

Door Opening (m)
Height: 2.338
Width: 2.585

Volume (m3)
37.30

20' Open Side

Technical Specifications

The container’s open side is very useful when loaded and emptied of its contents. Add a couple of modifications and it may also be used as a showroom, mobile shop, kiosk or snack bar.

Outside Dimension (m)
Length: 6.058
Width: 2.438
Height: 2.591

Inside Dimensions (m)
Length: 5.898
Width: 2.287
Height: 2.299

Weight (kg)
Gross Weight: 24000
Loading: 20600
Tare: 3400

Forklift Pockets (m)
Width: 0.360
Height: 0.115

Door Opening (m)
Height: 2.165
Width: 2.114

Volume (m3)
31.00

Side Door Opening (m)
Height: 5.702
Width: 2.154

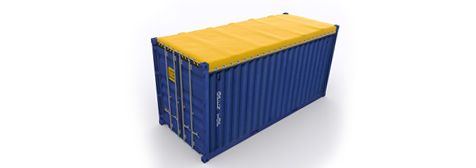

20' Open Top

Technical Specifications

This container may be loaded from the top opening and from the ordinary door opening. The open top allows it to be loaded with objects, which are too tall to fit in a standard container. The top opening is covered with an extremely wear and tear resistant tarpaulin; perfect if an adjustable ceiling is required.

Outside Dimension (m)
Length: 6.058
Width: 2.438
Height: 2.591

Inside Dimensions (m)
Length: 5.960
Width: 2.350
Height: 2.352

Weight (kg)
Gross Weight: 30480
Loading: 28320
Tare: 2160

Forklift Pockets (m)
Width: 0.360
Height: 0.115

Door Opening (m)
Height: 2.281
Width: 2.340

Volume (m3)
33.00

40 FT

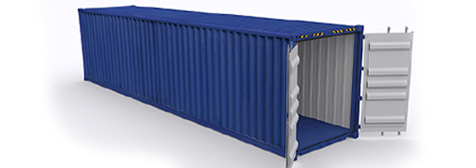

40' Dry

Technical Specifications

40' Dry (used 40NW)

Outside Dimension (m)
Length: 12.192
Width: 2.438
Height: 2.591

Inside Dimensions (m)
Length: 12.032
Width: 2.350
Height: 2.390

Weight (kg)
Gross Weight: 30480
Loading: 26860
Tare: 3680

Forklift Pockets (m)
Width: 0.360
Height: 0.115

Door Opening (m)
Height: 2.280
Width: 2.343

Volume: (m3)
67.60

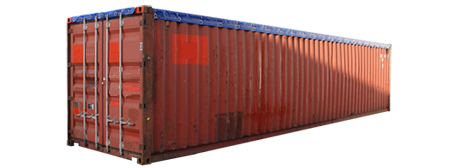

40' Open Top

Technical Specifications

This container is like a 40' open top container.

Outside Dimension (m)
Length: 12.192
Width: 2.438
Height: 2.591

Inside Dimensions (m)
Length: 12.032
Width: 2.35
Height: 2.35

Weight (kg)
Gross Weight: 30480
Loading: 26530
Tare: 3950

Forklift Pockets (m)
Width: 360.000
Height: 115.000

Door Opening (m)
Height: 2340.000
Width: 2272.000

Volume (m3)
67.00

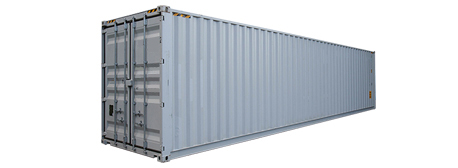

40' High Cube

Technical Specifications

A container that offers more space heightwise (+ 30 cm). Nevertheless, it can still be carried on an ordinary chassis

Outside Dimension (m)
Length: 12.192
Width: 2.438
Height: 2.896

Inside Dimensions (m)
Length: 12.032
Width: 2.350
Height: 2.695

Weight (kg)
Gross Weight: 30480
Loading: 26580
Tare: 3900

Forklift Pockets (m)
Width: 0.360
Height: 0.115

Door Opening (m)
Height: 2.585
Width: 2.343

Volume (m3)
76.20

Flat Rack

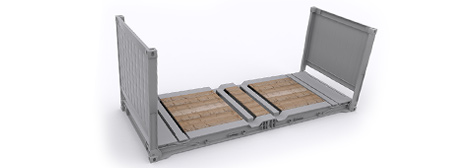

20' Flat Rack Container with Collapsible End

Technical Specifications

Exterior

Length:
20 '0"
6.058 m

Width:
8 '0"
2.438 m

Height:
8 '6"
2.591 m

Interior

Length:
18 '5 62/64"
5.638 m

Width:
7'3 46/64"
2.228 m

Height:
7'3 59/64"
2.233 m

Weight:

MGW:
74, 950 lb
34, 000 kg

TARE:
6,370 lb
2, 890 kg

NET:
68,580 lb
31, 110 kg

Purpose:
Captioned units can be coordinated from EISU 750000 to EISU 750300.

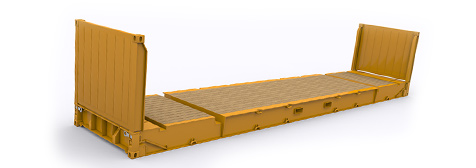

40' Flat Rack Container with Collapsible End

Technical Specifications

Exterior:

Length:
40 '0"
12.192 m

Width:
8 '0"
2.438 m

Height:
8 '6"
2.591 m

Interior:

Length:
38' 7 39/64"
11.776 m

Width:
7'3 46/64"
2.228 m

Height:
6'4 61/64"
1.955 m

Weight:

MGW:
99,210 lb
45,000 kg

TARE:
10,140 lb
4,600 kg

NET:
89,070 lb
40,400 kg

Purpose:

Captioned units can be coordinated from EISU 710000 ~ EISU 710500, EMCU 700451 ~ EMCU 70650
